9,500m Duvernay – Longest Well in Canada

Kiwetinohk breaks the Canadian longest well land record with an unbelievable 9,500m Duvernay well

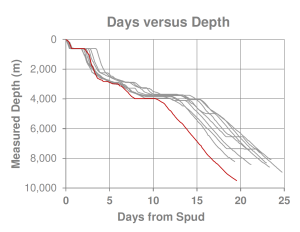

With Pacesetter’s XPACE Dual Telemetry MWD and enhanced PowerDrive Orbit RSS, Kiwetinohk successfully drilled a record-setting 9,500m MD well in the Simonette field. Not only is this the longest well ever drilled in Canada, but the 5,514m lateral was completed in a single run, marking Pacesetter’s 4th longest RSS run to date.

Congratulations to Kiwetinohk Energy Corp., the rig crews of Akita 41, Pacesetter’s DD and MWD Supervisors, and Pacesetter’s Real-Time Remote Monitoring Operations for this outstanding milestone.

DUVERNAY

OPERATOR Kiwetinohk Energy Corp.
HOLE SIZE 311mm/222mm/171mm
TOTAL DEPTH 9,500m MD

HIGHLIGHTS

5,514m single run lateral drilled from 3,986m to 9,500m
MWD & RSS tools endured high temps up to 144°C

TECHNOLOGIES

XPACE DT MWD
Pacesetter Orbit RSS
Reed TK53-O5 Bit
